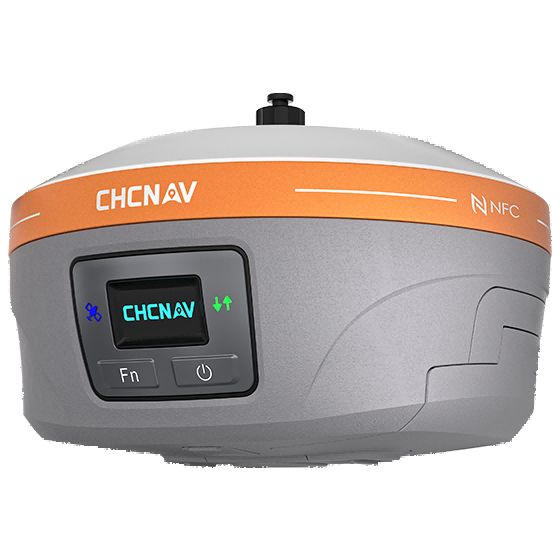

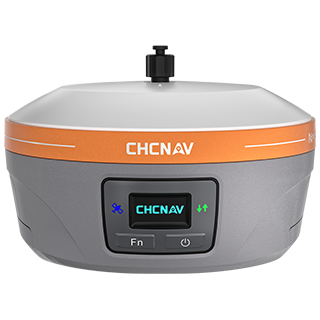

CHCNAV iBase
I

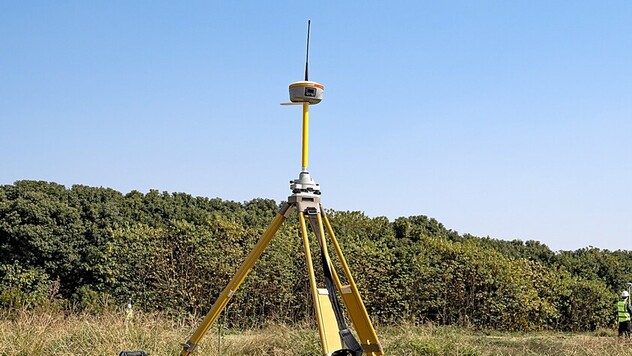

ntegrated GNSS Base Station for Stake-Out and Control Surveys
Highlights
The iBase integrates DistLink technology to reduce radio power consumption by 30%, enabling more than 13 hours of continuous operation. It also increases rover signal sensitivity by 30% to provide up to 30 km of coverage in complex terrain. Ultra Base mode supports dual data transmission and automatic network switching for simpler and more dependable surveying.
13+ Hours Runtime - Continuous operation for worry free fieldwork.
DistLink Technology - Up to 30 km coverage even in challenging terrain.
Ultra Base - Dual radio and network transmission with auto switching for instant fixes.
Premium GNSS - GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS and PPP for reliable positioning.
Premium GNSS – CHCNAV iBase
Key Features
01. 13+ Hours of Worry-Free Work
DistLink uses CHCNAV's proprietary data compression algorithm to reduce data volume and lower radio power demand. This delivers more than 13 hours of nonstop operation and over 60% longer battery endurance for efficient all-day surveying, with no mid-task interruptions and no extra batteries needed.

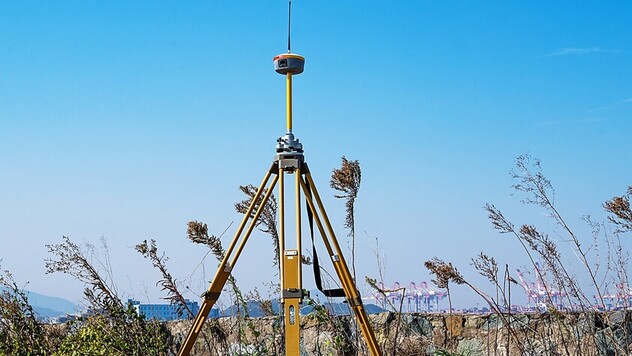

02. 30 KM Coverage
Powered by DistLink technology, the iBase uses CHCNAV's GNSS differential corrections compression algorithm to reduce transmission bandwidth and improve rover radio sensitivity by 30%. It delivers up to 30 km of coverage and maintains stable links in complex terrain.

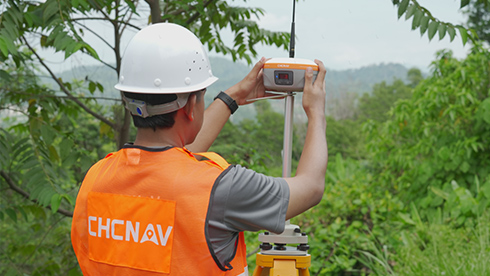

03. Auto Switch and Fast Fix
Ultra Base mode transmits differential data through radio and network simultaneously. AI-powered auto pairing chooses the optimal channel or server at startup for fast fixed solutions. Automatic switching to network mode beyond radio range keeps surveying continuous and efficient.
04. Comprehensive GNSS Tracking
Ensure superior accuracy with the iBase's 1408-channel GNSS technology. It supports GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS constellations, as well as PPP service, providing dependable RTK corrections and improving survey accuracy and efficiency.

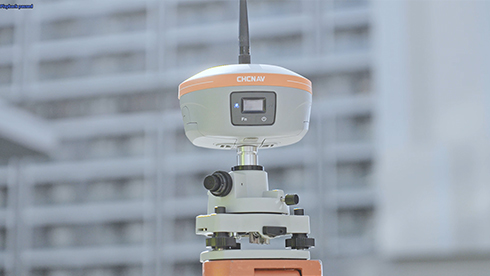

05. Advanced Multipath Mitigation
Improve positioning accuracy with advanced multipath mitigation algorithms. The iBase ensures that high-quality GNSS corrections are transmitted to rovers for optimal performance in challenging environments.

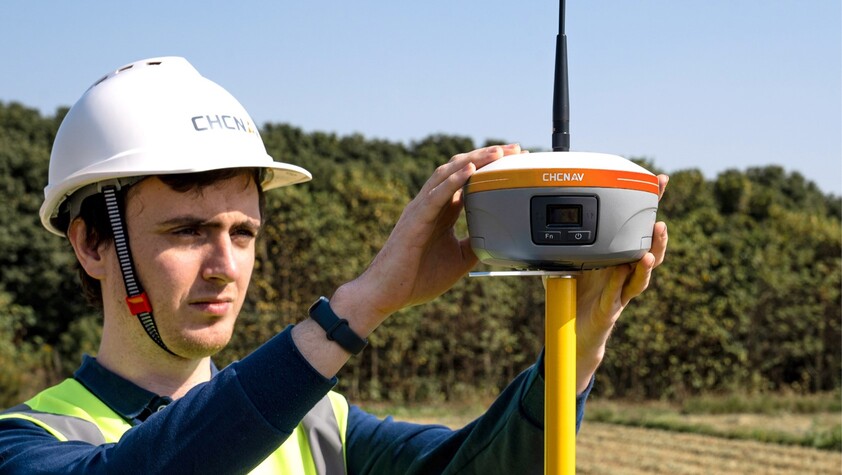

06. Integrated and Rugged Design
Eliminate the need for external batteries and cables with the iBase's integrated design. Its industrial-grade construction meets IP67 standards for dust and water resistance and has an IK08 shock rating for enhanced durability.
Technical Specifications
Positioning
Specification | Details |
|---|---|
GNSS | Full GNSS |
IMU | 200 Hz |
Maximum Precision | 0.8 cm H / 1.5 cm V |
Sensors
Specification | Details |
|---|---|
Camera | No |
Connectivity
Specification | Details |
|---|---|
Wireless | Bluetooth, Wi-Fi, NFC |
Cellular | 4G LTE |
Modem | 410–470 MHz, Rx/Tx |
Physical
Specification | Details |
|---|---|
Weight | 1.73 kg |
Dimensions | 160.5 × 103 mm |
Battery Life | Up to 13 hours RTK base with DistLink |
Environmental
Specification | Details |
|---|---|
Operating Temperature | -40°C to +65°C |
Protection Rating | IP67 |
Drop Resistance | 2 metres |
