CHCNAV i76
Palm-Sized GNSS with Visual Stakeout
Highlights

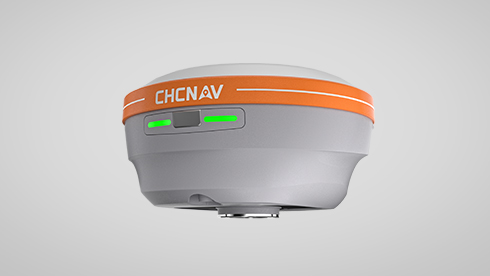

The i76 Palm Visual RTK is a lightweight GNSS receiver combining GNSS, IMU, and dual cameras.
Weighing just 450g and IP68-rated, it maintains a 96% fixed rate even in areas with high solar activity.
Its CAD AR visual stakeout enables precise path planning, while the 5th Gen Ultra-IMU ensures accuracy even at a 60° tilt.
![i76-rover-advanced-cad-visual-stakeout (1).mp4 [video-to-gif output image]](https://s7.ezgif.com/tmp/ezgif-733c7011b2690b1b.gif)
With over 17 hours of battery life, the i76 offers precision and adaptability for professionals.

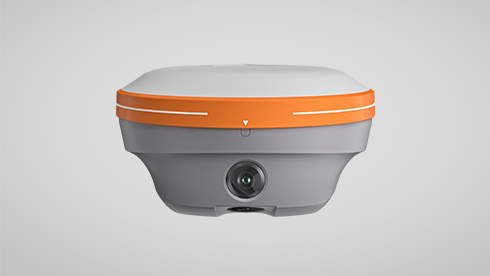

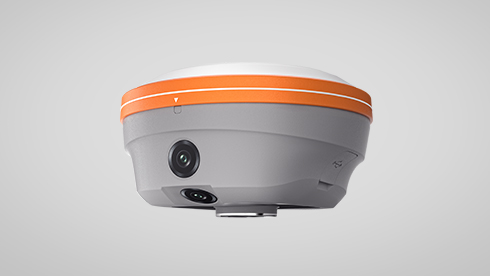

Augmented RealityDual 2 MP cameras with a 95° field of view.
Ultra-IMU5th generation IMU for high accuracy and tilt compensation.
Lightweight Extremely compact and weighing just 450g.
Positioning
- GNSS : Full GNSS
- IMU : 200 Hz
- Precision max. : 0.8 cm H / 1.5 cm V
Sensors
- Camera : Dual
Connectivity
- Wireless : Bluetooth, Wi-Fi, NFC
- Modem : 410-470 MHz, Rx/Tx
Physical
- Weight : 0.450 kg
- Size : 106 x 55.6 mm
- Battery life : Up to 17 hours RTK rover
Environmental
- Operating : -40°C to +65°C
- Protection rating : IP68
- Drop resistance : 2 Metres
